MTHFS - an Unexpected Enzyme in PURE

Background: what does folinic acid do in PURE?¶

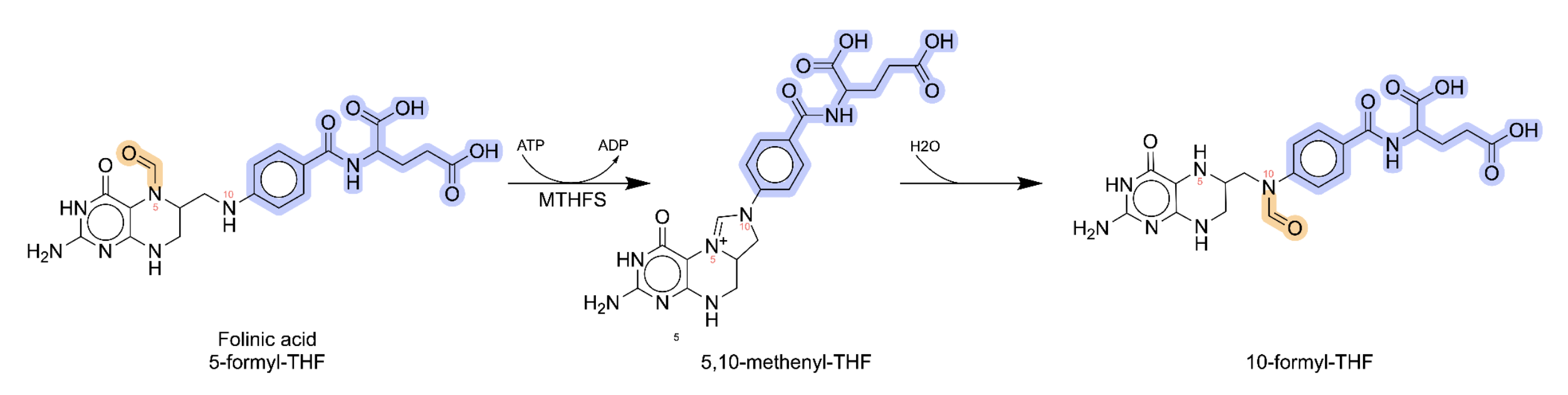

Folinic acid (5-formyl-THF) is one of the components in Energy Mix, the small molecule components of PURE reactions, and is crucial to the production of N-formylmethionine (fMet) by the enzyme Methionyl-tRNA formyltransferase (MTF). fMet is a modified amino acid required for translation initiation in bacterial transcription-translation systems like PURE. However, folinic acid cannot be used directly by MTF and first has to be converted into 10-formyltetrahydrofolate (10-formyl-THF). This process happens in two steps: (1) folinic acid is converted (chemically or enzymatically) to an intermediate product 5,10-methenyl-THF, which then (2) spontaneously hydrolyzes into 10-formyl-THF (Figure 1).

There are two ways to prepare folinic acid for use in PURE:

Shimizu’s method (2010):

• Dissolve folinic acid in 50 mM β-mercaptoethanol (50 mM) and 1M HCl,
• Incubate at room temperature for 3 hr until the reaction is visibly yellow (Make Energy Mix).

Implied protocol (from Lavickova et al. 2019):

• Dissolve folinic acid in water or DMSO.
• (No further processing suggested)

The problem: implied folinic acid preparation results in lower PURE activity¶

When we used folinic acid resuspended in water for our PURE reactions, we observed a consistent reduction in activity. In fact, our Energy Mix had higher activity when we omitted folinic acid altogether. In contrast, folinic acid chemically converted to 5,10-methenyl-THF, yielded high activity and fast translation [See Figure 2 and Figure 3]. We also observe that, when 5,10-methenyl-THF is included in the Energy Mix, its function diminishes significantly after one freeze-thaw cycle, indicating it may be unstable in solution.

These discrepancies led us to acknowledge that folinic acid, the more stable THF derivative, must be present in the Energy Mix and hypothesize that an additional enzyme may be allowing One-Pot PURE users to convert folinic acid to the usable formyl donor—explaining how these users are able to simply dissolve folinic acid in water and still achieve high performance, unlike our experience with multi-pot preparations.

The twist: The difference between OnePot vs. 36-Pot purification¶

Methenyltetrahydrofolate synthetase (MTHFS, EC 6.3.3.2), also known as 5-formyltetrahydrofolate cyclo-ligase, is the enzyme responsible for converting folinic acid to 5,10-methenyl-THF. OnePot purification workflows — where all 36 PURE proteins are co-purified — increases the likelihood that MTHFS might copurify due to protein-protein interactions. In addition, MTHFS is a metalloprotein that binds magnesium and utilizes ATP as a cofactor. These properties increase the likelihood of MTHFS binding to the nickel resin during purification. In contrast, 36-Pot workflows involve purify each individual component separately. 36-Pot Protein Mix may have less MTHFS carryover and thus may be unable to process folinic acid.

Experimental confirmation: supplementing MTHFS restores activity¶

To test this hypothesis, we supplemented commercial human MTHFS (the only commercially available source) into PURE reactions with energy mix containing folinic acid dissolved in water. The addition of MTHFS resulted in a dramatic improvement in PURE system performance as shown in Figure 2 and Figure 3, confirming that folinic acid processing is required.

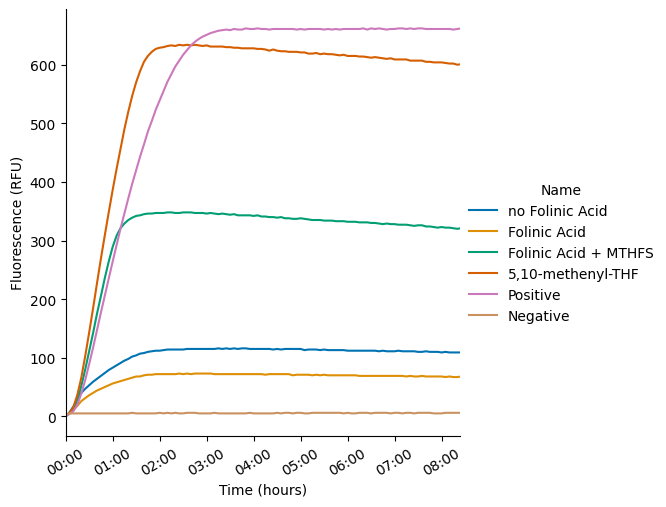

Time series

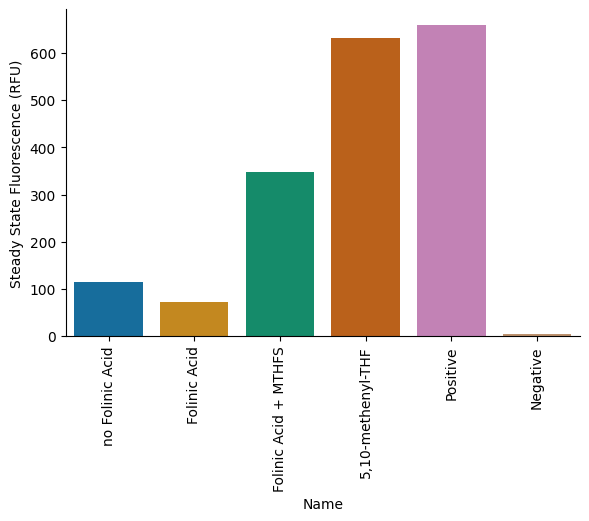

End point

Source:Analysis (20250220)

Source:Analysis (20250220)

While the performance did not fully match that observed using pre-converted 5,10-methenyl-THF, the improvement was substantial, demonstrating proof-of-concept that MTHFS activity is essential. This finding validates our hypothesis that MTHFS must be a “shadow component” unintentionally contributing to the success of some PURE preparations.

Implications for PURE system design & future directions¶

In this developer note, we want to emphasize a key finding: simply dissolving folinic acid in water without MTHFS does not support high-performing PURE reactions. This explains why some labs, particularly those using 36-Pot purification methods, may struggle with folinic acid-based energy mixes.

Our next step is to express bacterial MTHFS and integrate it into our PURE mixture. Based on our initial results, we encourage adding MTHFS to PURE systems to ensure a more stable energy mix, as folinic acid is a more stable THF derivative compared to 5,10-methenyl-THF. This could improve long-term reproducibility and performance.

Finally, we want to highlight a tradeoff in PURE system design. One-pot purification is a cheaper and more convenient approach that many researchers rely on, but it may come at the cost of a less-defined system, where unexpected enzyme carryover (like MTHFS) influences performance. Understanding these hidden factors is crucial as the PURE community continues refining and optimizing the system.
